Use:

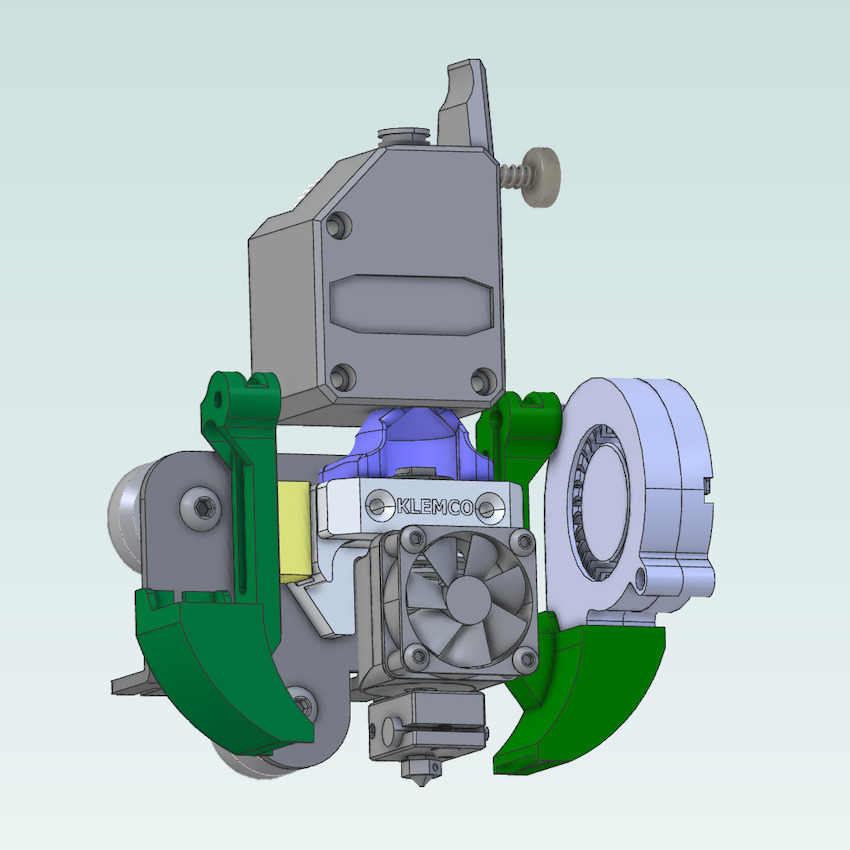

Facilitates attachment of BMG direct drive to KLEMCO Mount.
Print Settings:
Supports: Yes
Raft: MAYBE
Infill: 100%
Layer Height: 0.15-ish
Mirror OKAY
Hardware:
(2) M3x0.5x10mm Button Head Screws to attach adapter to top of KLEMCO Mount (came with mount)
(1) M3x0.5x18mm Button Head Screw if you are going to use the Left Fan Shroud with spacer.
Notes:
If you want to use a part cooling fan on the left you will need to print the spacer and left fan shroud modified for BMG setup.
You will also need to cut a length of bowden tube to connect the BMG and the hotend. (Approximately 65.5mm)

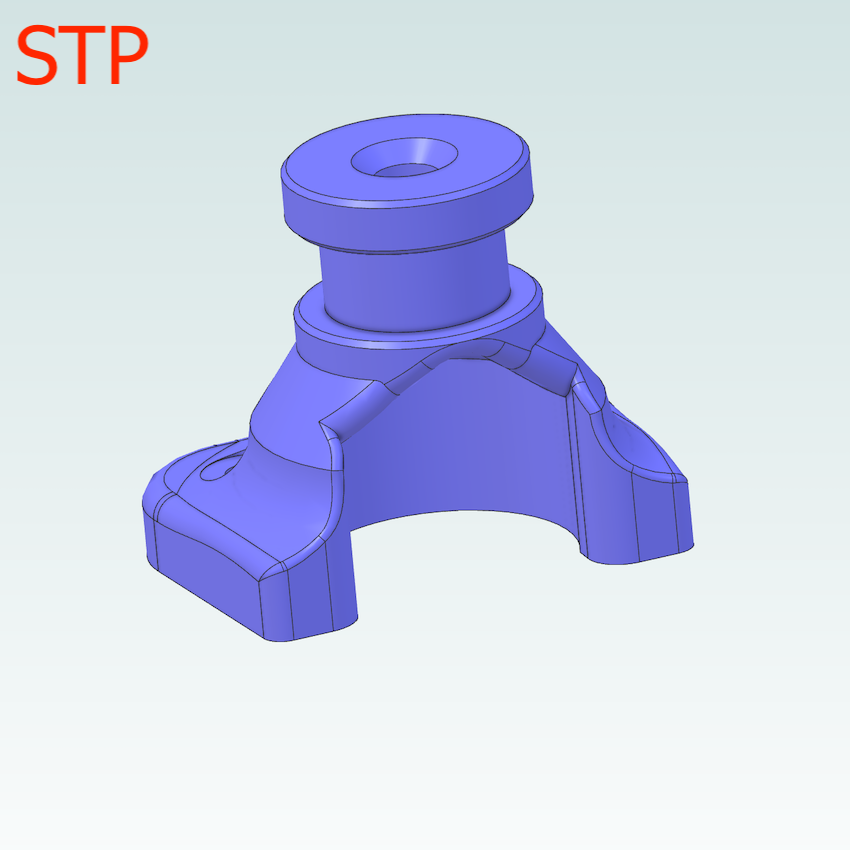

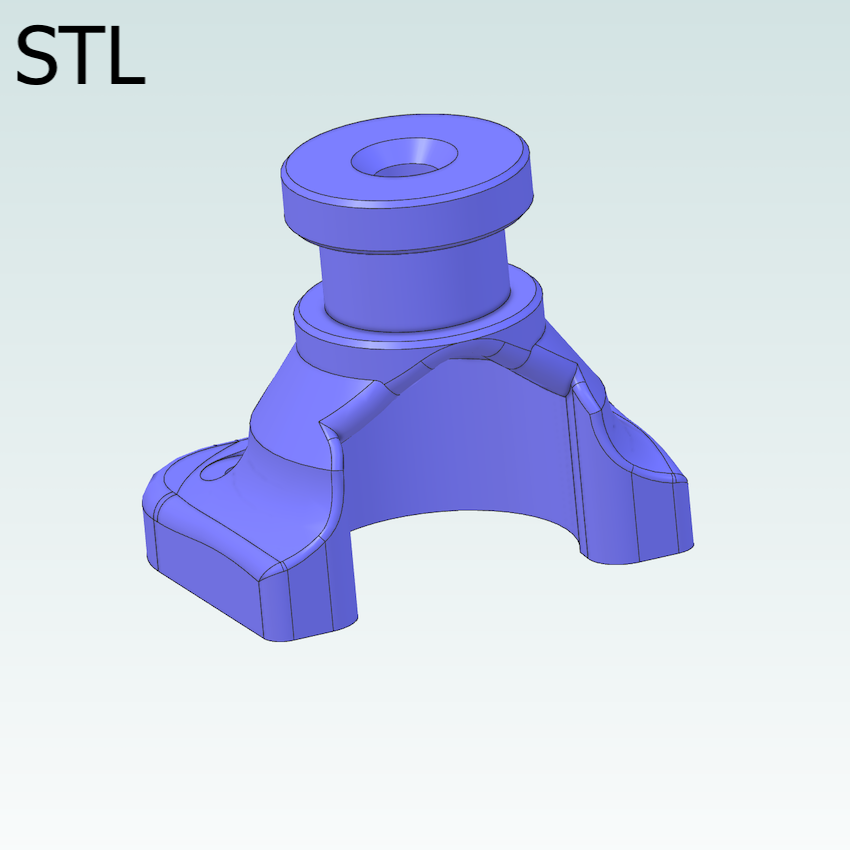

Files: STL (for printing) – STP (for CAD)
Simple BLTouch Left – STL
Simple BLTouch Left – STP
Compatible With:

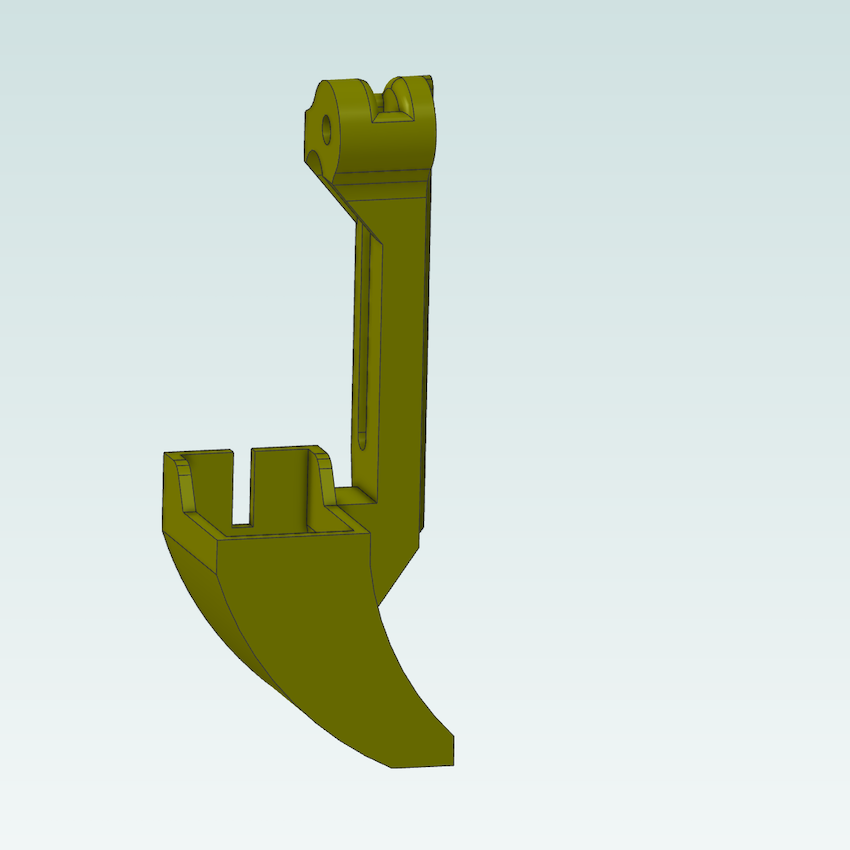

Left Fan Shroud Modified for BMG Setup

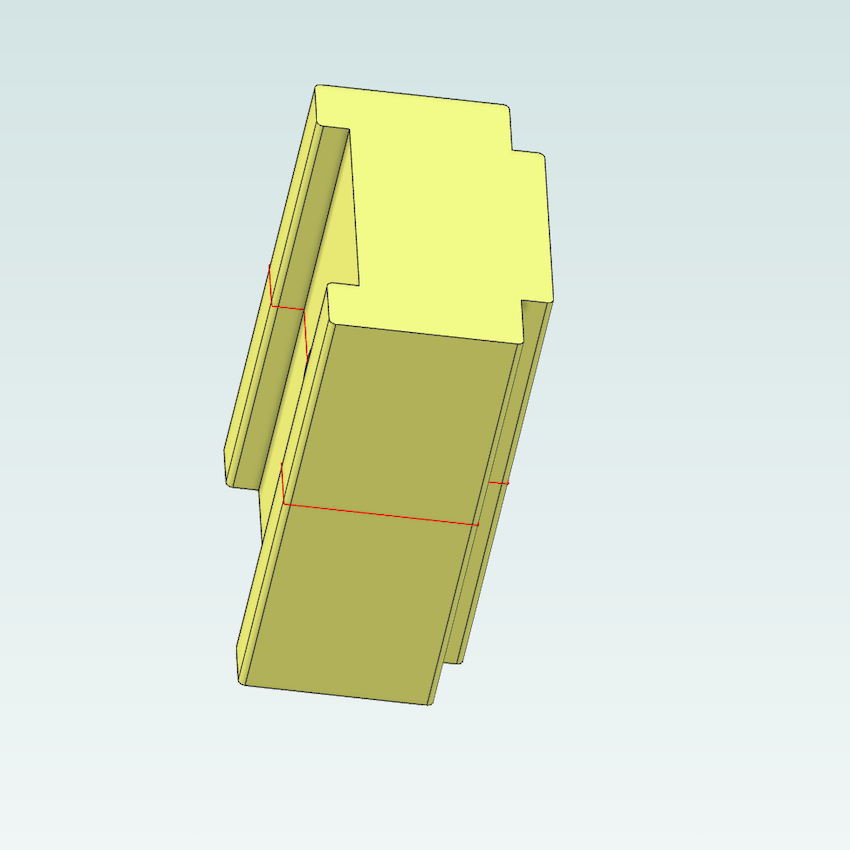

Fan Spacer for Left fan BMG Setup
EZABL Slider – 12mm/18mm
Fan Shroud 50x15mm
BLTouch Slider
Slider for Pro Series Inductive Sensor
