Use:
Facilitates attachment of BLTouch bed leveling sensor to KLEMCO Mount with the use of dual part cooling fans.
Print Settings:
Supports: NONE
Raft: NONE
Infill: 100%
Layer Height: 0.15-ish
Do not Mirror
Hardware:

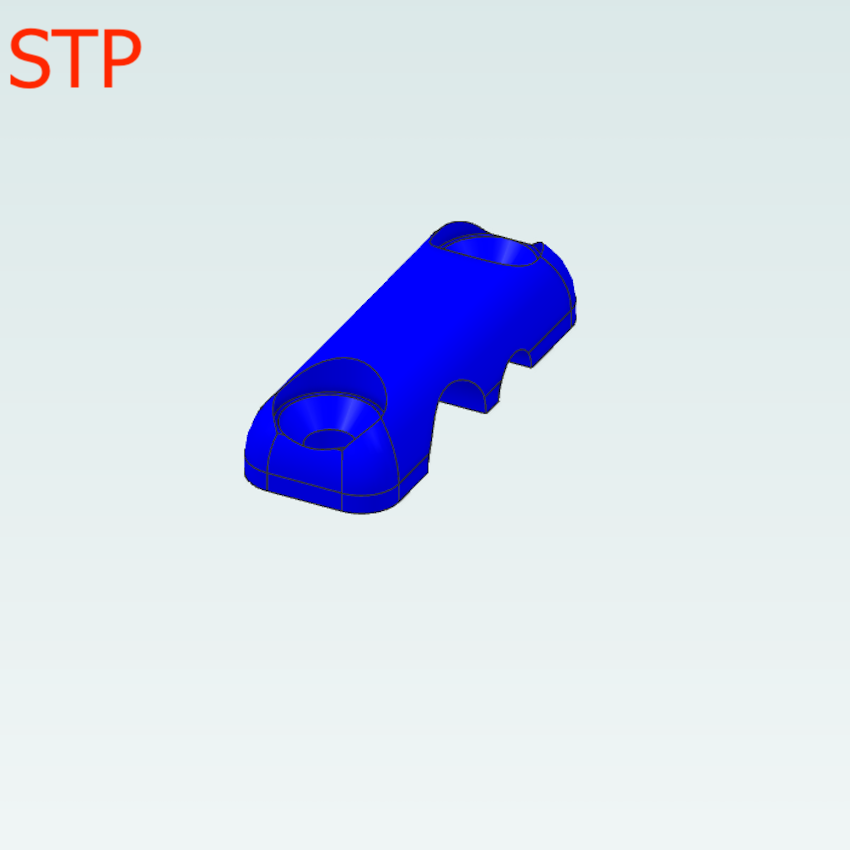

(2) M3x0.5x10mm Button Head Screws to attach modified strain relief to top of KLEMCO Mount (came with mount)
(2) M3x0.5 Hex Nuts to attach Clamp to Base (came with mount)
(2) M3x0.5 Hex Nuts to attach Clamp to Base (came with mount)
(1) M3x0.5 Hex Nut to clamp BLTouch mounting slider. (came with mount but you may need another depending on your setup.)
(1) M3x0.5x10mm Button Head Screws to clamp BLTouch mounting slider. (came with mount but you may need another depending on your setup.)
Hardware that came with your BLTouch sensor
Notes:

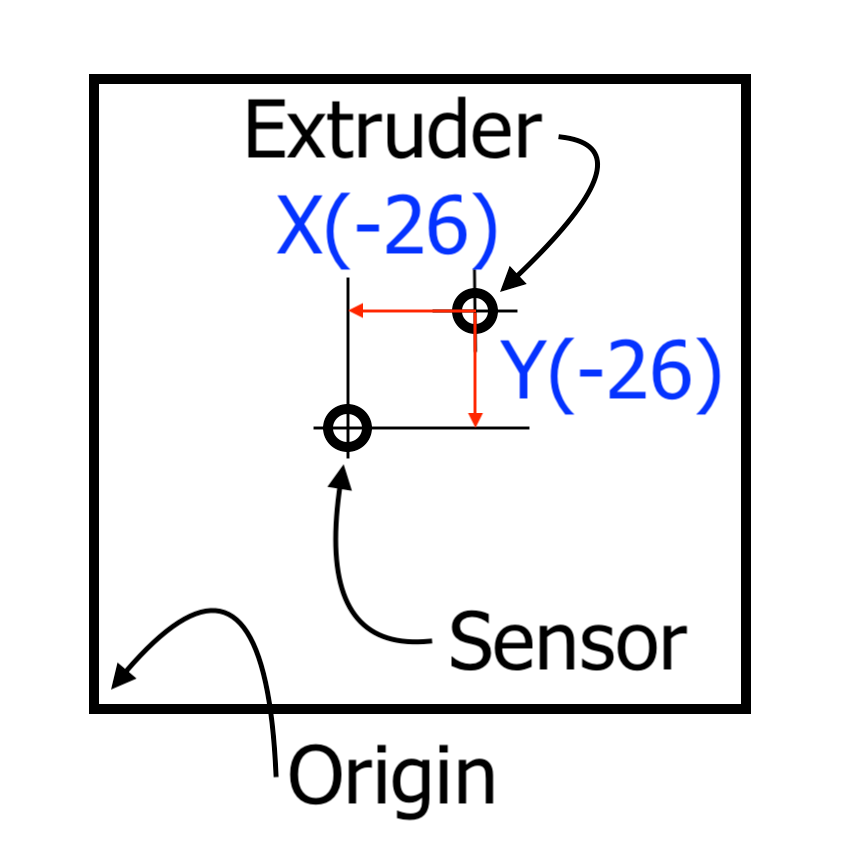

The image shows (-) offsets assuming the accessory has been printed as downloaded and the printer is using Marlin firmware utilizing the origin in the standard front left location. Values are rounded to the nearest MM.
Files: STL (for printing) – STP (for CAD)
BLTouch Dual Fan Both – STL

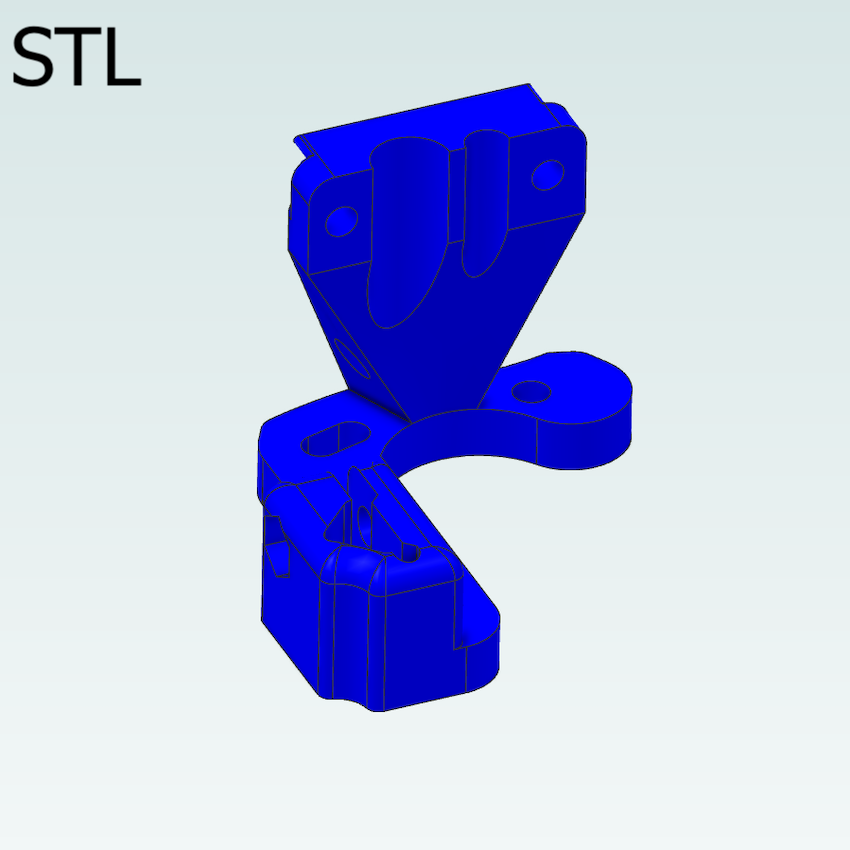

BLTouch Base – STL

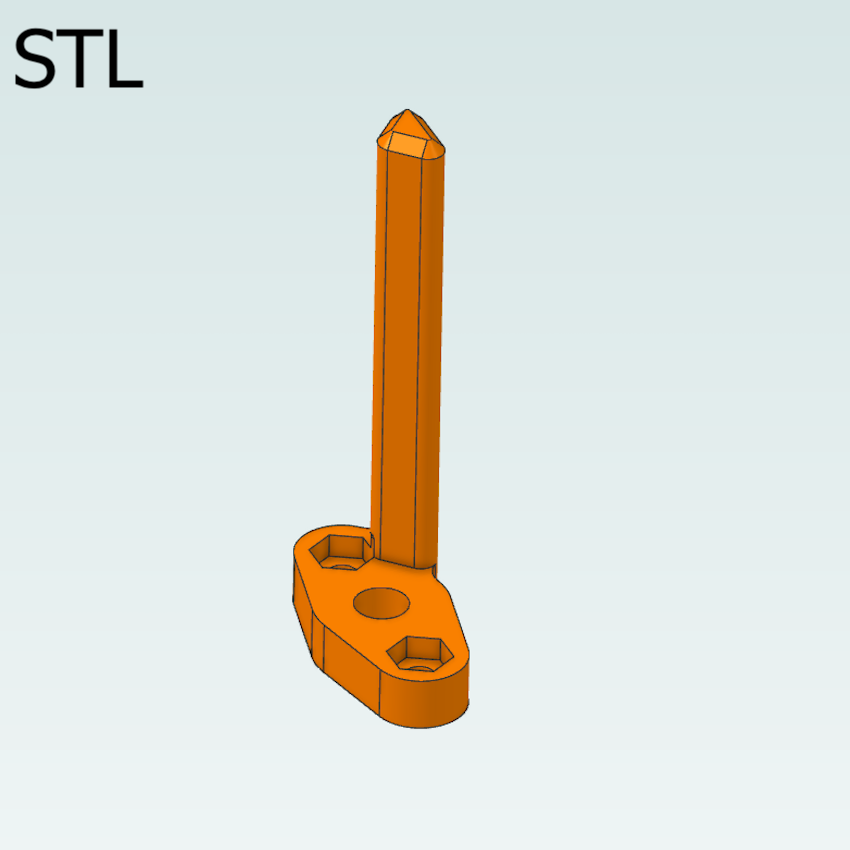

BLTouch Slider – STL
Clamp – STL
BLTouch Base – STP

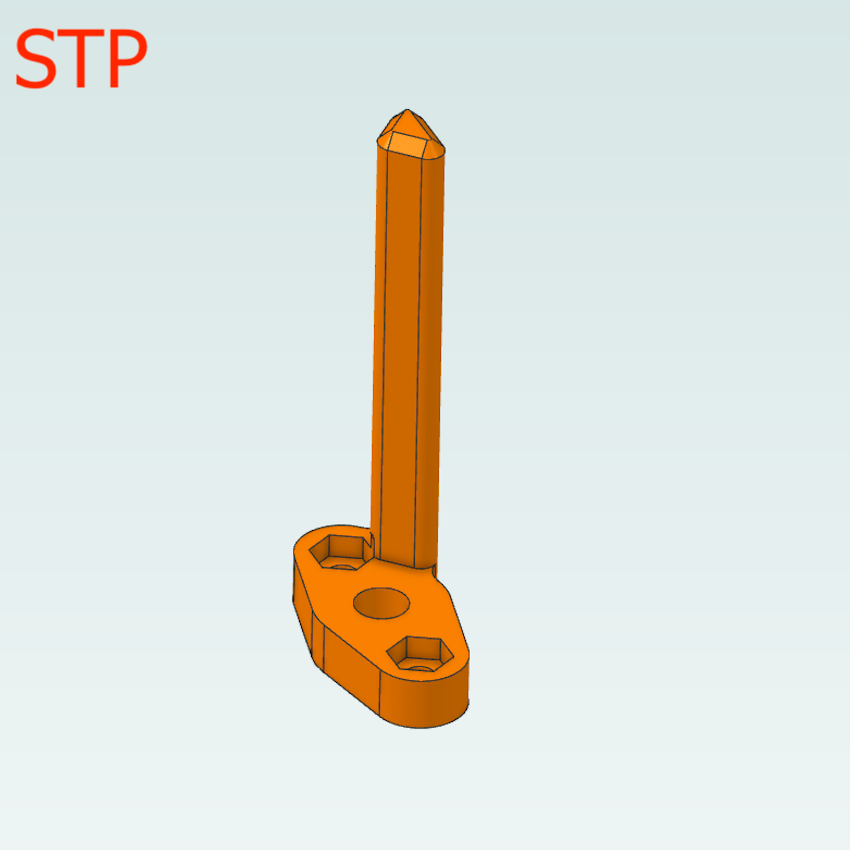

BLTouch Slider – STP
Clamp – STP
Compatible With:
Fan Shroud 50x15mm
EZABL Slider – 12mm/18mm
