Use:
Facilitates attachment of EZABL bed leveling sensor to KLEMCO Mount with one part cooling fan.
Print Settings:
Supports: NONE
Raft: NONE
Infill: 100%
Layer Height: 0.15-ish
Mirror OKAY
Hardware:
(2) M3x0.5x10mm Button Head Screws to attach to side of KLEMCO Mount (came with mount)
Notes:

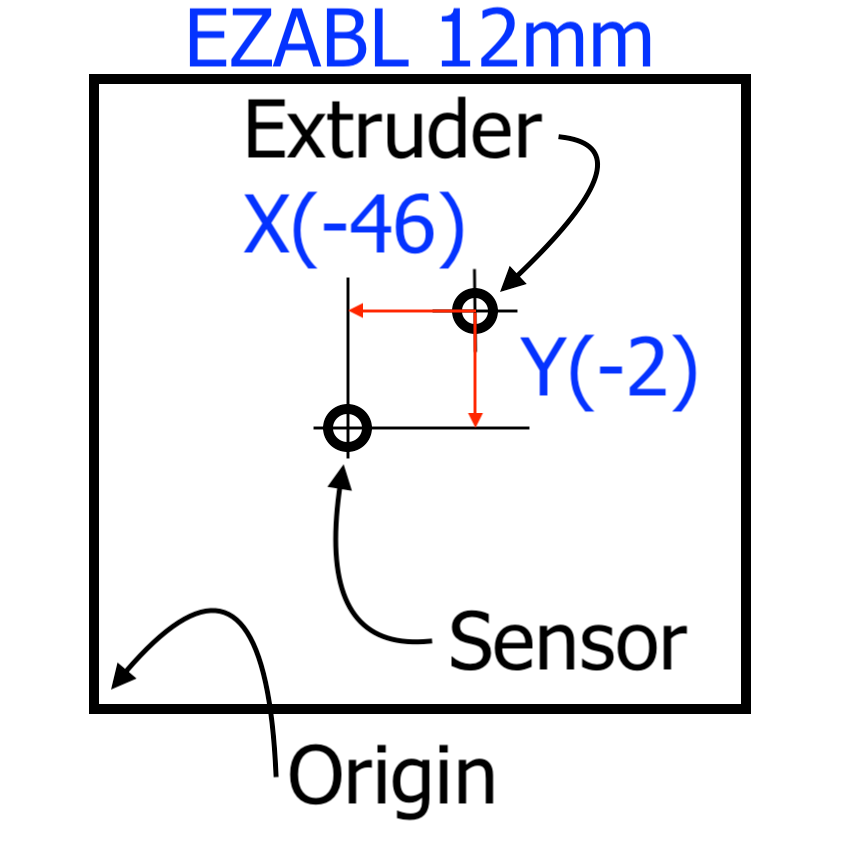

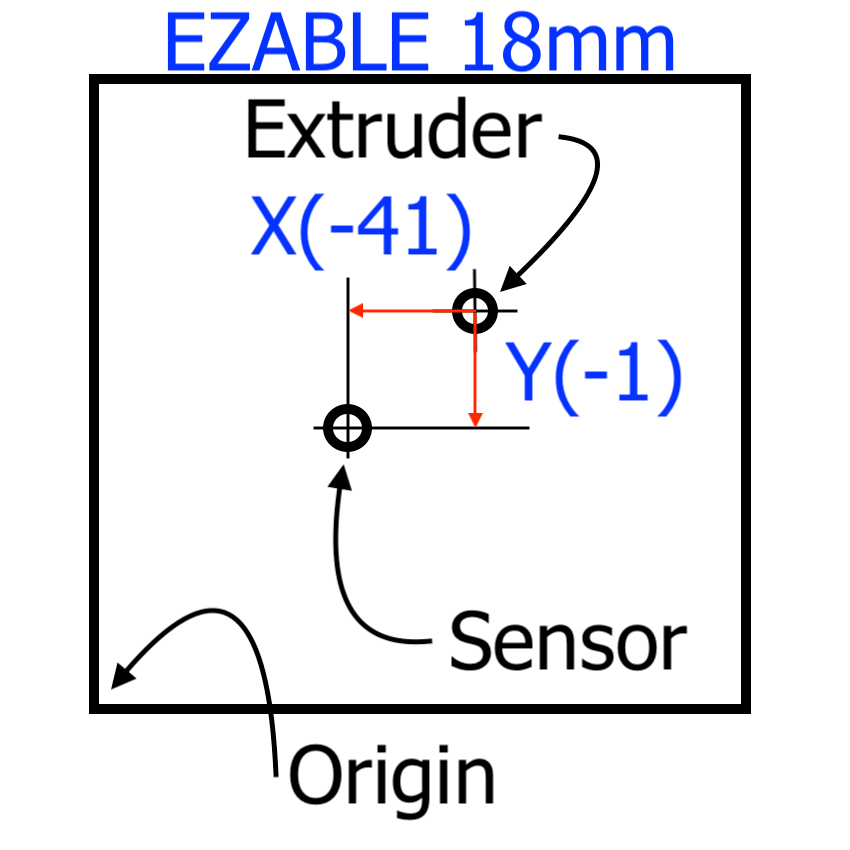

The image shows (-) offsets assuming the accessory has been printed as downloaded and the printer is using Marlin firmware utilizing the origin in the standard front left location. Values are rounded to the nearest MM. If you mirror the accessory so that it attaches to the right side you must use a (+) value for X.
Files: STL (for printing) – STP (for CAD)

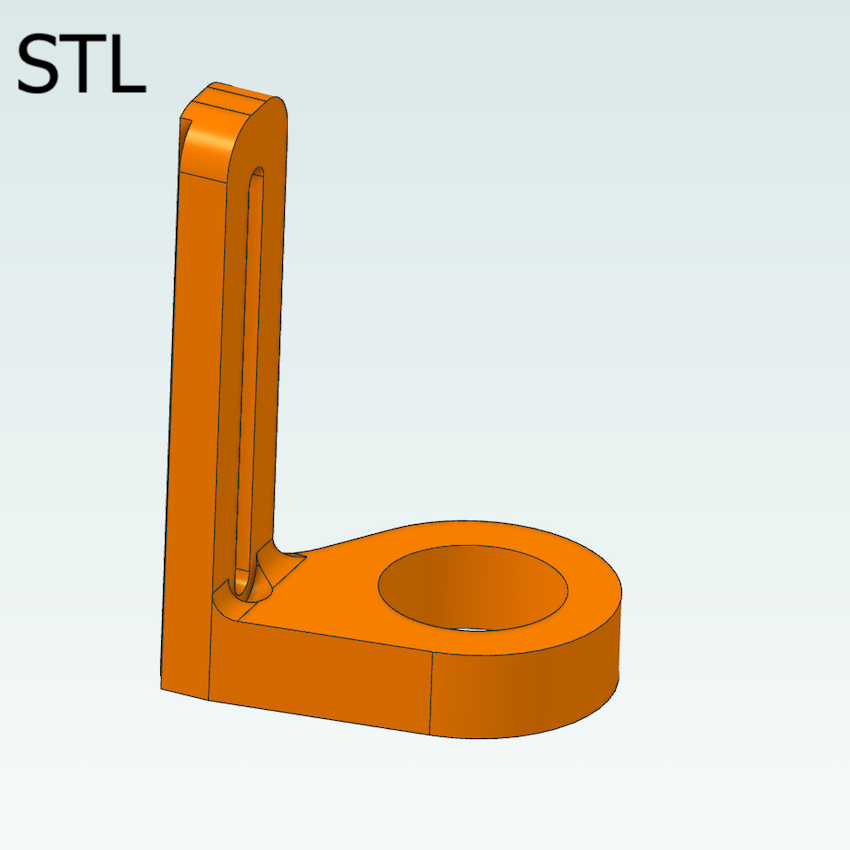

EZABL Slider 18mm Left – STl
EZABL Slider 12mm Left – STL

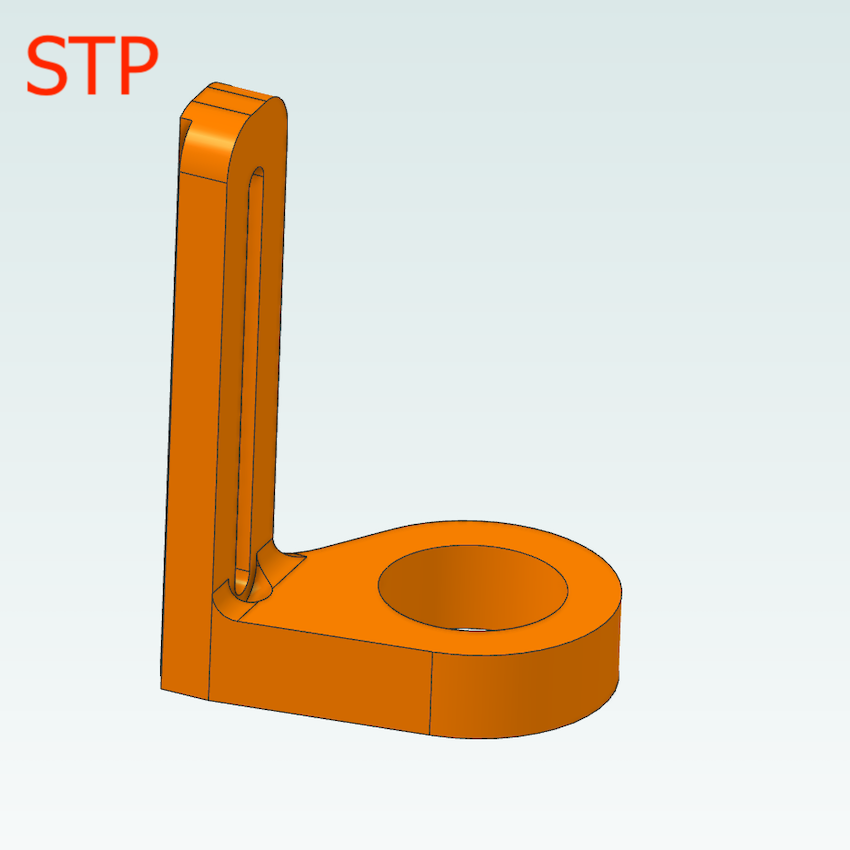

EZABL Slider 18mm Left – STP

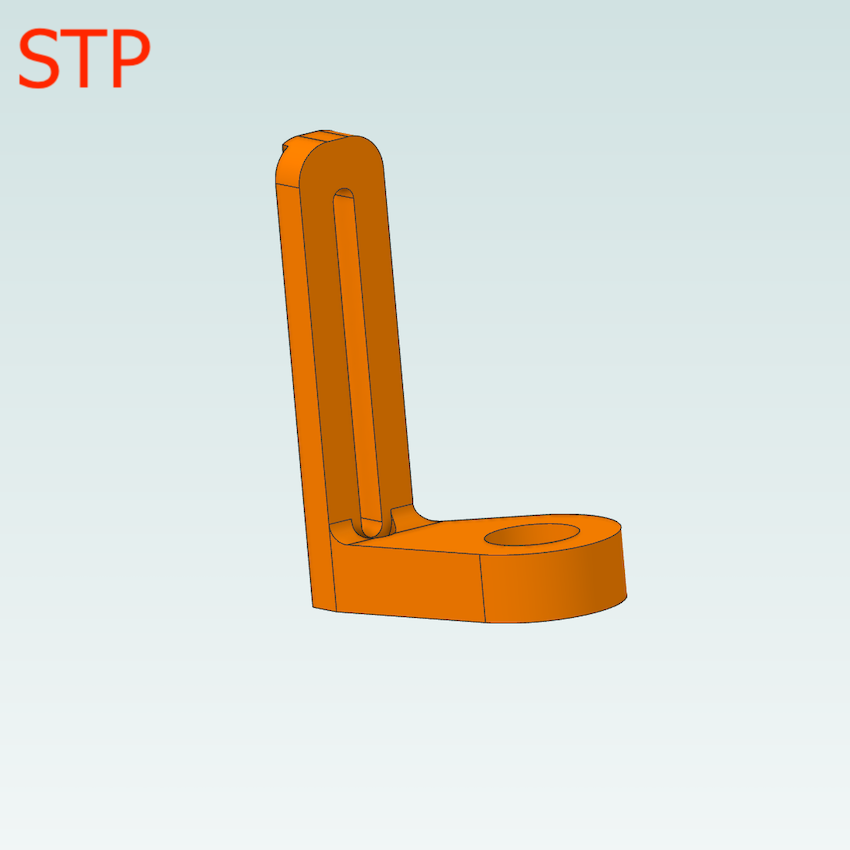

EZABL Slider 12mm Left – STP
Compatible With:
Fan Shroud 50x15mm
Base and Clamp – STL
BLTouch Slider
