Use:
This is for adapting the “Orbiter” made by lorinczroby
Print Settings:
Supports: NONE
Raft: NONE
Layer Height: 0.15-ish
Hardware:
(2) M3x0.5x12mm Flat Head Screw to attach to top of KLEMCO Mount (came with mount)
(2) M3x0.5x10mm Button Head Screws to attach Orbiter to Adapter (came with mount)
(2) M3x0.5 Hex Nuts to attach Orbiter to Adapter (came with mount)
Notes:
This is a work in progress. There is no guarantee this accessory will advance. The part cooling fans may work with a bit of grinding to the Orbiters mounting flanges. The adapter prints upside down from the end use position.
Files: STL (for printing) – STP (for CAD)

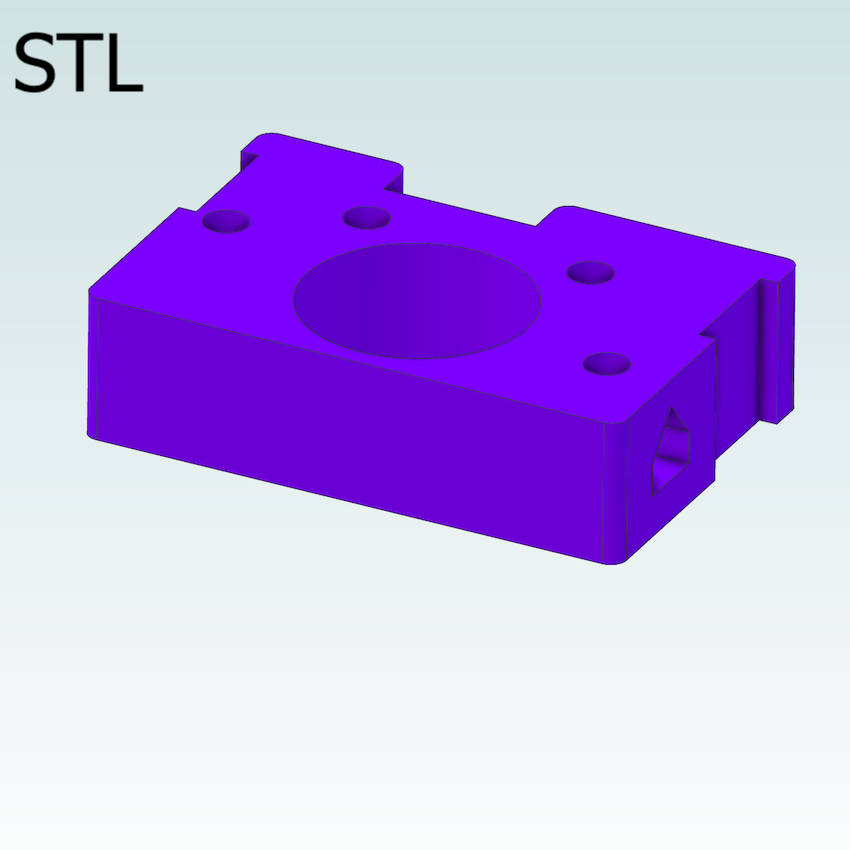

Orbiter Adapter – STL

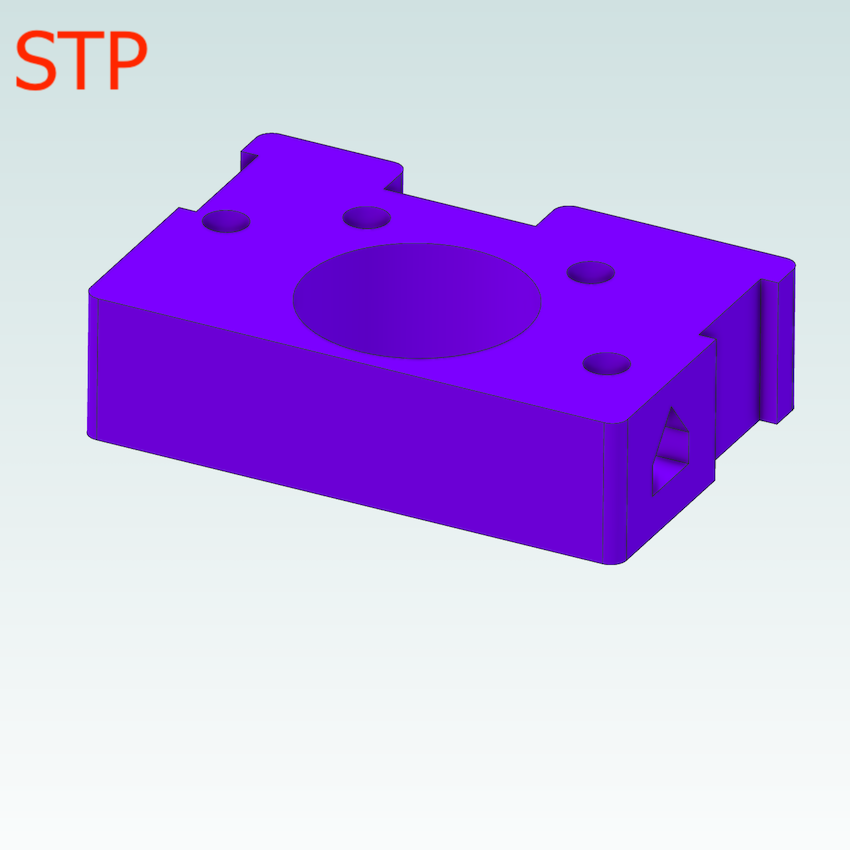

Orbiter Adapter – STP
Compatible With:
This is a work in progress. The part cooling fans will work with a bit of grinding to the Orbiters mounting flanges.
