Use:
Facilitates attachment of the stock inductive sensor on the CR-10 Pro series or any other Creality printer that comes with an inductive sensor.
Print Settings:
Supports: NONE
Raft: NONE
Infill: 100%
Layer Height: 0.15-ish
Mirror OKAY
Hardware:
(1) M3x0.5x10mm Button Head Screw to attach Slide to side of KLEMCO Mount (came with mount)
Hardware that attaches stock metal sensor mount. (came with your printer)
Notes:
Modifying sensor offset in the firmware is required.

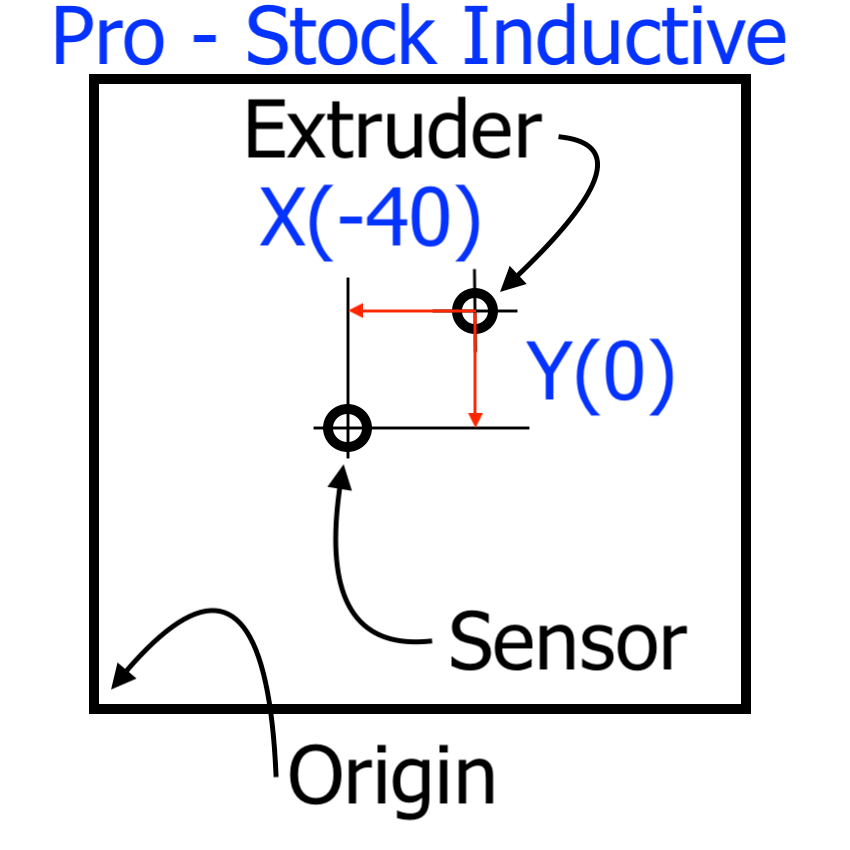

The image shows (-) offsets assuming the accessory has been printed as downloaded and the printer is using Marlin firmware utilizing the origin in the standard front left location. Values are rounded to the nearest MM. If you mirror the accessory so that it attaches to the right side you must use a (+) value for X.

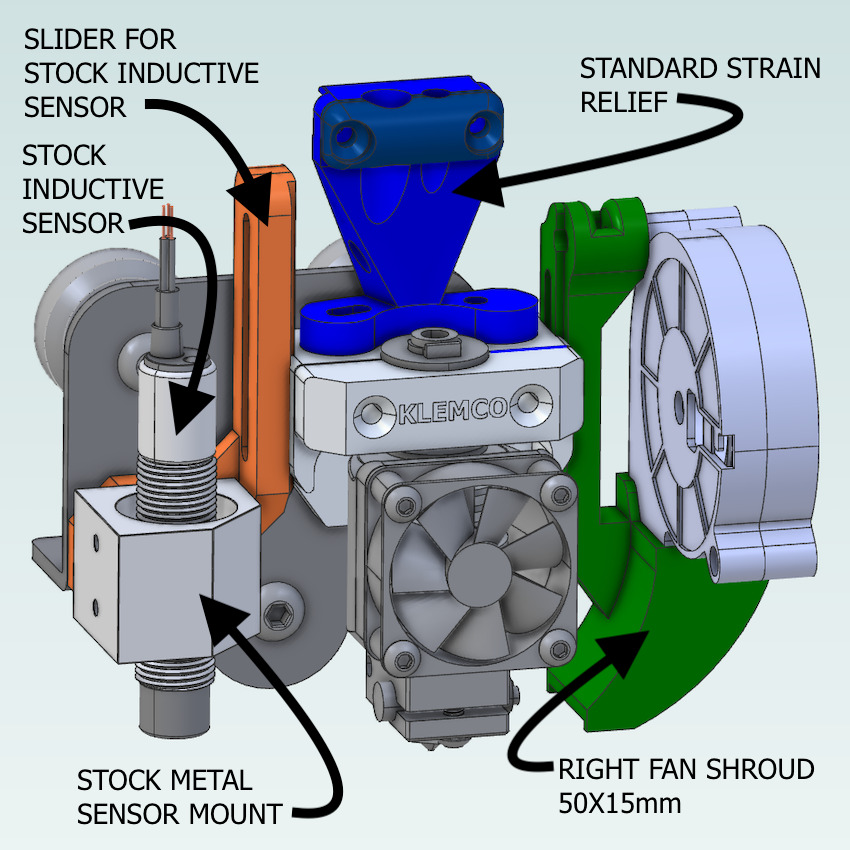

Remove the stock metal sensor mount and attach it to KLEMCO slider using the hardware that attached the metal sensor mount to the carriage. Adjust the sensor to bed height appropriately.

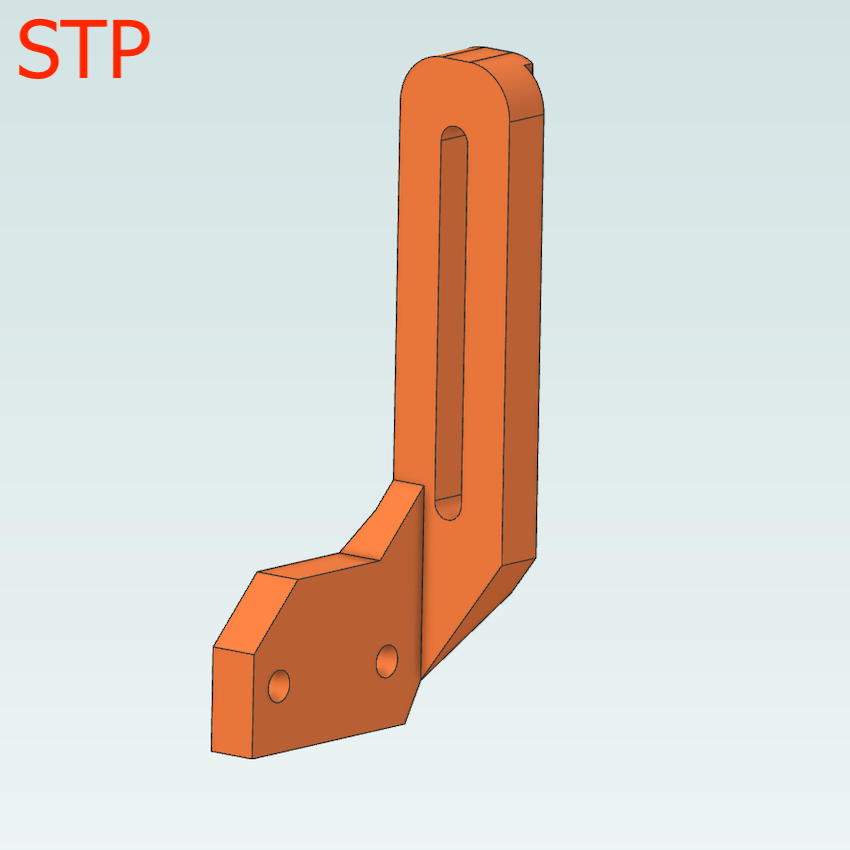

Files: STL (for printing) – STP (for CAD)
Simple BLTouch Left – STL
Simple BLTouch Left – STP
Compatible With:
Fan Shroud 50x15mm
Base and Clamp – STL
